What Is a Concrete Slab Foundation?

A concrete slab foundation is a flat, horizontal surface made of concrete that serves as the base for a structure. It’s poured directly onto the ground and is widely used in both residential and commercial applications. When done right, it’s one of the most durable and cost-effective ways to build a home or structure.

Why Choose a Slab-On-Grade Foundation?

A slab-on-grade foundation, also known as a concrete slab on grade, is poured at ground level. It’s particularly ideal in areas with warmer climates where the ground doesn’t freeze. Homeowners often opt for this type of house slab foundation due to its simplicity and affordability.

Types of Concrete Slab Foundations

1. Monolithic Slab Foundation

This is poured all at once, including the footing. It’s fast and affordable.

2. Floating Slab Foundation

Used for garages or sheds, this slab ‘floats’ on a layer of gravel or crushed stone.

3. Post-Tensioned Slab

Uses steel cables inside the concrete to provide strength and reduce cracks.

4. Suspended Slab Foundation

Usually found in multi-story buildings, this type is elevated and not poured directly on the ground.

5. Rebar Reinforced Slab

Includes steel bars (rebar) to improve the strength and load-bearing capacity of the slab.

6. Waffle and Ribbed Slab Foundation

Designed with grid-like or ribbed structures, they are common in commercial builds for extra load support.

Construction Process for Slab Foundations

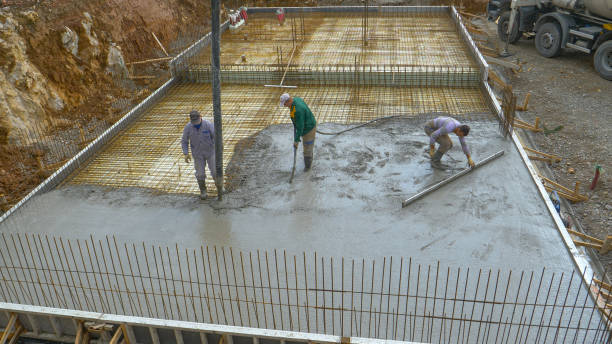

The construction of a concrete slab foundation starts with site prep, including excavation, grading, and drainage setup. A crushed stone or gravel sub-base is added, topped with a vapor barrier to block moisture. Formwork is then built to shape the slab, and rebar or mesh is installed for reinforcement. Concrete is poured, leveled, and finished. Afterward, the slab is cured to gain strength, and under-slab insulation is added to improve energy efficiency.

Durability and Longevity of Concrete Slabs

The lifespan of a slab foundation can exceed 50 years when built with quality materials and maintained properly. Choosing durable slab materials and hiring experienced concrete slab contractors helps ensure longevity.

Common Issues with Concrete Slabs

1. Cracks in Concrete Slabs
   Hairline cracks are normal, but larger cracks may signal structural issues.
2. Settling and Heaving
   Poor soil conditions or moisture changes can lead to foundation settling or heaving.
3. Plumbing Leaks and Drainage Issues
   Leaks under the slab can cause serious problems over time. Poor drainage or tree roots may also impact the foundation.

Repairing Slab Foundation Problems

1. Crack Repair Methods

Small cracks can be filled with epoxy or sealant. Larger issues may require structural repair.

2. Slabjacking or Mudjacking

This involves injecting material under the slab to lift it.

3. Piering and Foundation Leveling

Steel piers are driven into the ground to stabilize and lift the slab.

When cracks widen, doors stick, or floors slope, it’s time to call foundation contractors or specialists.

Key Design and Engineering Considerations

Load bearing and soil analysis are essential steps in ensuring a stable foundation. A structural engineer evaluates the load-bearing capacity of the site along with the soil conditions to determine the proper design and depth of the slab. In colder regions, frost line considerations become critical—footings must be placed below the frost line to prevent shifting caused by freeze-thaw cycles. Additionally, adhering to FF/FL flatness standards ensures the floor surface is level and smooth. To prevent cracks and accommodate natural expansion, joint fillers are used. All of these steps must align with local building codes, which guide proper foundation slab design and construction.

Comparing Slab with Other Foundation Types

1. Slab vs. Crawl Space
   Slabs are quicker and cheaper to build. Crawl spaces allow easier plumbing access.
2. Slab vs. Basement
   Basements add space but are more expensive.
3. Slab vs. Pier and Beam
   Pier and beam offer access under the house, but can have moisture issues.

Applications of Concrete Slabs

Concrete slabs are common in homes, apartments, garages, sheds, patios, and industrial spaces. Their strength, low cost, and ease of installation make them a top choice.

Why Choose Calif Construction for Your Slab Foundation?

At Calif Construction, we bring expertise in concrete slab pouring, foundation slab construction, and long-term durability. Our team of skilled contractors delivers quality foundations that meet both budget and building standards. Whether it’s a new home slab or a garage slab, we ensure every job is done right, from the formwork to curing.

FAQs

How thick should a concrete slab foundation be?

Most residential slabs are 4 to 6 inches thick. Heavier buildings may require reinforced or thicker slabs.

What is the cost of installing a slab foundation?

Costs typically range between $5 and $12 per square foot, depending on site and slab type.

Can I pour a concrete slab myself?

DIY pouring is fine for small patios or sheds. Larger builds need professional help
